LTPK LT-DMPF4H Four Nozzle Magnetic Pump Perfume Beverage Essential Oil Hand Wash Bottle Liquid Filling Machine with Conveyor

  • Product Detail

Product Description

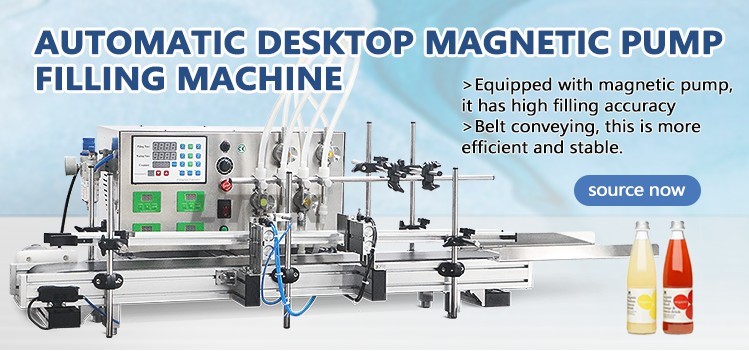

Desktop full automatic machine is very efficient with high cost performance. It is widely used in all kinds of industries such as essential oils,perfumes,juice liquid etc.Machine with magnetic pump is good choice for low viscous corrosive liquid,a little foamy liquid.316 stainless steel pump can use for very high temperature liquid fill.

Application

It is suitable for various corrosive,low viscosity and non-particulate liquids,such as:various chemicals (oil, liquor,alcohol,eye drops,syrup),chemicals(solvent,acetone),oil (edible oil,essential oil) ),cosmetics (toner,makeup remover,spray),food (100 degree high temperature,such as milk,soy milk), beverage (juice,fruit wine),seasoning (soy sauce vinegar) and other non-particulate liquid;high and low foam liquid ( Care solution,detergent)

Parameter

Machine model
LT-DMPF4HA
LT-DMPF4HB
Power supply
110/220V 50-60HZ
Maximum flow velocity
5500ml/min
(Each nozzle and base on water)
9000ml/min
(Each nozzle and base on water)
Working speed
20-30 bottles/min
(based on 50-1000ml filing volume)
20-40 bottles/min
(based on 50-1000ml filling volume)
Air pressure
0.3-0.4MPa
Filling accuracy
≤±1% (For water)
Diameter of Flling Nozzle
6/8mm
Delay Range
0.01-999.9s
Count Range
1-99999 Times
Filling Volume
3-1000ml(220V)3- 500ml(110V)
Size of air compressor connector
OD8mm
Bottle height
<220mm(Can be customized,max height 300mm)
Package Size
About 1110*650*420mm
About 1110*650*420mm
Gross weight
About 50.5kg
About 51.5kg

Details
